RETRUE 5000lbs Air Suspension Kit for Ford F-150 2WD/4WD (2015–2025)
Shipping:
We ship our products primarily through USPS/UPS. All items will be shipped within 72 business hours upon receipt of payment (except Saturday and Sunday). Orders placed on weekend will be shipped within 4 days.
Returns:
Items purchased from RETRUE may be returned in original unused condition within 30 days from the date of purchase for a refund, to the original form of payment. All returns must be pre-approved by RETRUE. Otherwise, unauthorized returns will not be accepted.
Warranty: Air Springs: Limited Lifetime
Hardware & Brackets of Air Springs: 2 Years
Bumpers, Hardware, Fittings & Air Line of Air Accessories: 2 Years
Hardware & Brackets of Air Accessories: 1–2 Years (depending on model; view product warranty documents for details)
Frequently Bought Together

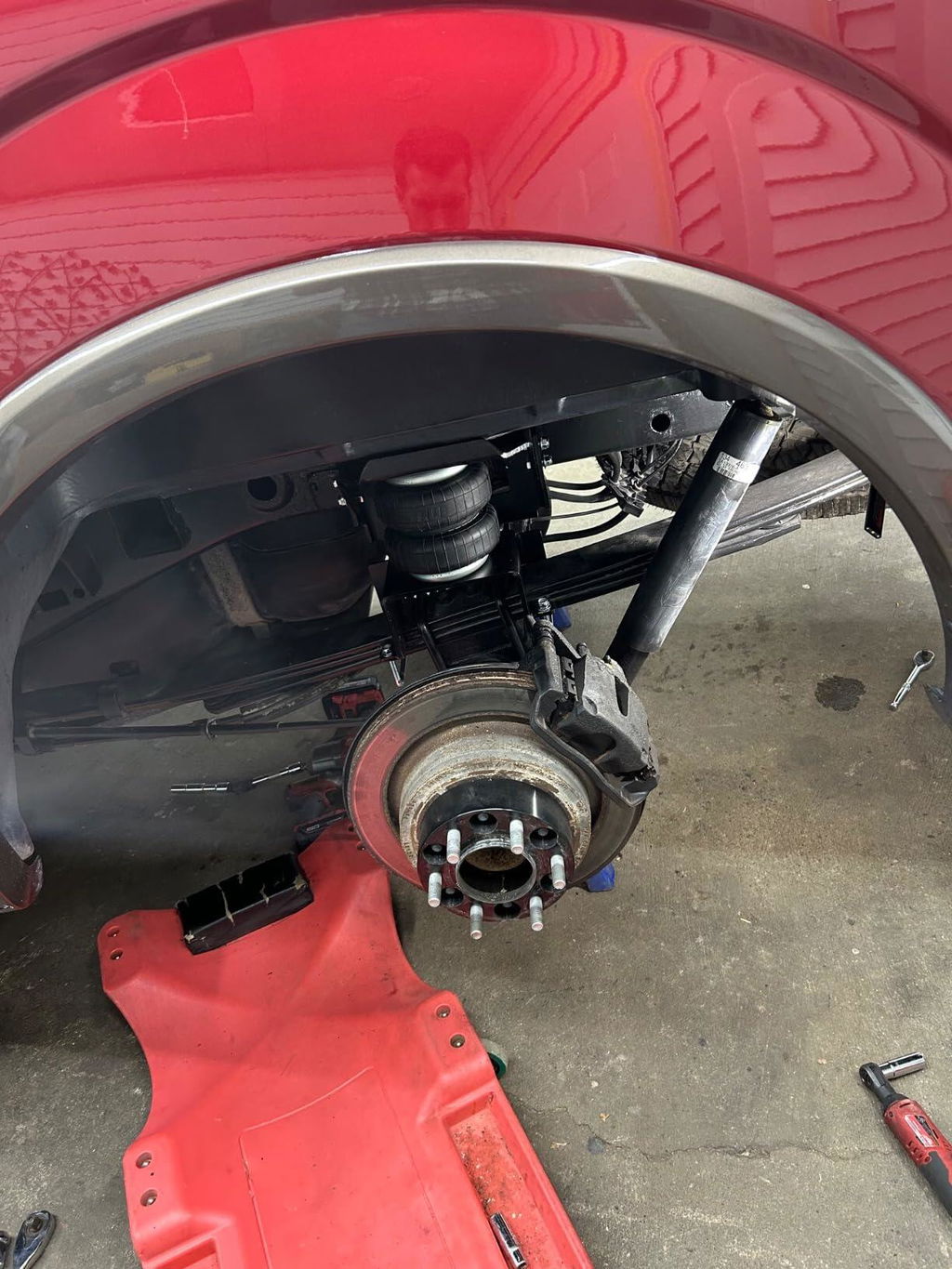

Installation was pretty simple, the instructions provided were fairly easy to follow and the illustrations within were clear to see. The only issue that I had was the nut welded inside the frame rail for the jounce bumper. Passenger welds broke, took me a bit of screwing around to get a deepwell and a flexhead socket inside there but once I did that, it went smooth. Driver's side went easier, I used a lot of WD-40 and a wire brush to clean up the bolt before I removed it from the jounce bumper.
I also read a lot of the reviews before hand and picked up a 1/4" T fitting to eliminate separate lines for each bag. One fitting, mounted inside the gas cap and life is good. Truck rides completely different loaded than it did before. I have been very impressed so far and once I do some more hauling, I will try to remember to update this post.
Now that the airbags are installed, my boat sits a little higher than it did before, may have to find a draw bar with a little more drop to it.
Everything was great quality, fitment was great as well.
Installed on 2016 F150XLT 4x4, took about 2-1/2 hrs. Pretty simple install.
Wasn't able to find any info wether these worked for a 2020 f150 4x4 with a 6 lift. Took the gamble, and they fit pretty good. Brackets weren't A1 on fitment but seem like it should be good. Waiting for additional air hose to air them up. Other than that, 6lift seems to be fine with this set up.
Great product the instructions could have been a little better but if you’re mechanically inclined the slightest bit you won’t have any problems. Had to drill one hole out a little bit but no big deal. Hid a gauge and schrader valve inside the gas cap. Got the idea from another review. 10/10 satisfied
Took me about 2 hours to install and do it correctly! Super easy everything went and fit where it was supposed to, didnt have to do any modifications, the nuts that go inside the frame took me a minute to figure out but one i did it was a breeze. no leaks. No missing parts, all the brackets are well built and designed. can't speak for the longevity because I just finished installing 30 minutes ago so at this point t I definitely recommend this set up.Update so after installing them I check with soapy water for leaks and didn't find any, but both bags are definitely loosing air. At this point I'm gonna have to take both bags back off and submerge them in water to see it the bags themselves are leaking at either the upper or lower plates.

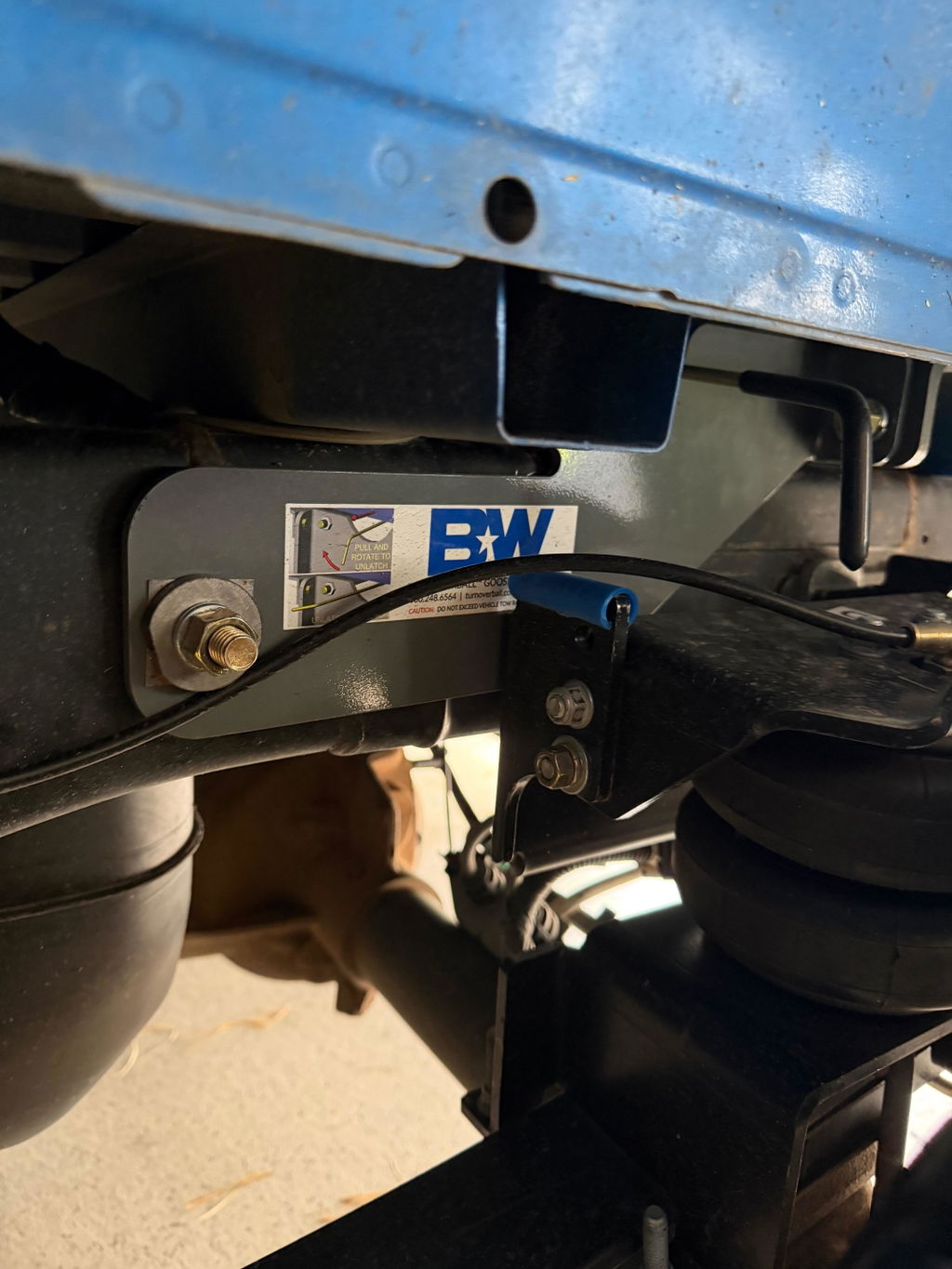

J'ai d? retourner le produit car il m'es impossible de l'installer à cause que les trous sont déjà utilisés pour ma sellette pour ma fifth wheel (voir photo). Mais à part ?a, ce kit semblait très bon !!!
Kit fit well and works as it should. I did buy a fitting to connect both bags to 1 valve for easier filling and equalizing. Put the valve next to my gas filler to keep it out of sight.
Installed air bag kit on 2019 F150 fit great and works great. If you look up install video for Firestone f150 air bags it makes install super easy as it looks like exact same kit basically. 40 psi is perfect for my 25 foot toyhauler camper with equalizer bars. Ride empty with 4 to 5 lbs feels slightly softer than factory ride in rear without air bags. Overall very happy. I designed 3D printed a bracket to hold air fitting inside cab and used a couple of fitting to make it fill from 1 line instead of 2 and another y fitting inside cab to it off with 1/4 plastic dump valve Just use portable compressor to add air and valve to dump it. Very simple. If you want to install fill valve inside cab like I did kit doesn't come with enough airline but its just 1/4 standard air line. I needed about 5 feet extra. If you go through firewall grommet like I did be careful wires are in center. Id recommend staying closer to metal to be safe. There are 2 layers to the factory grommet.
Highly recommended.

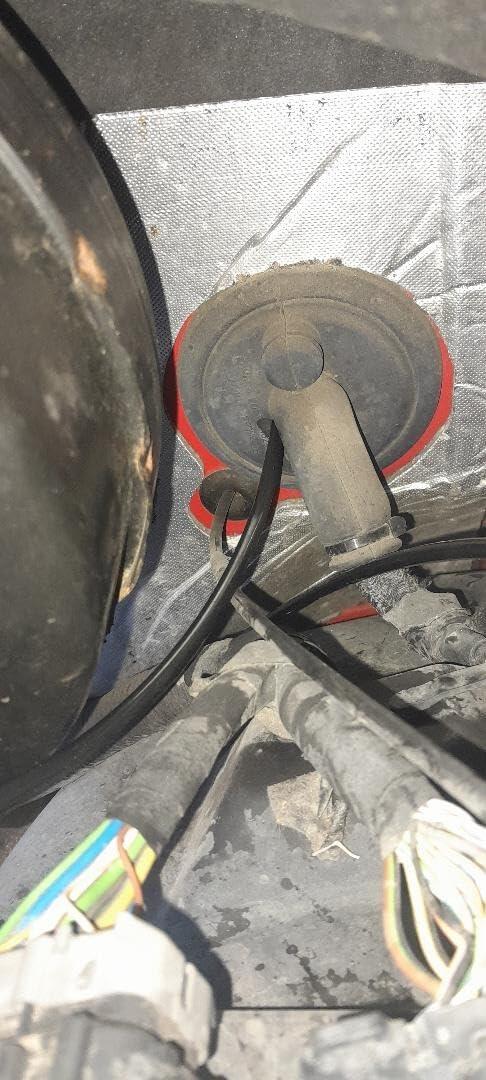

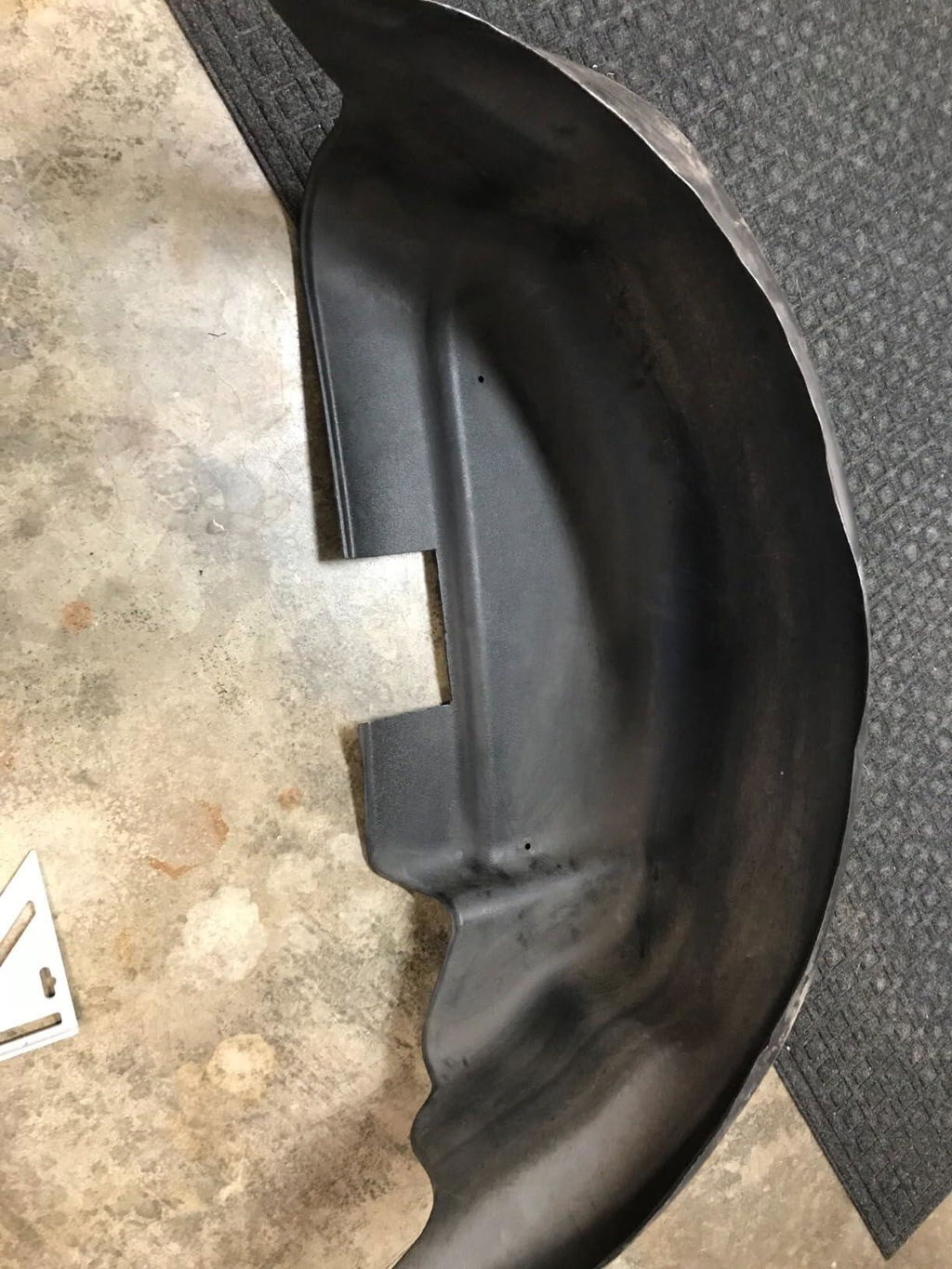

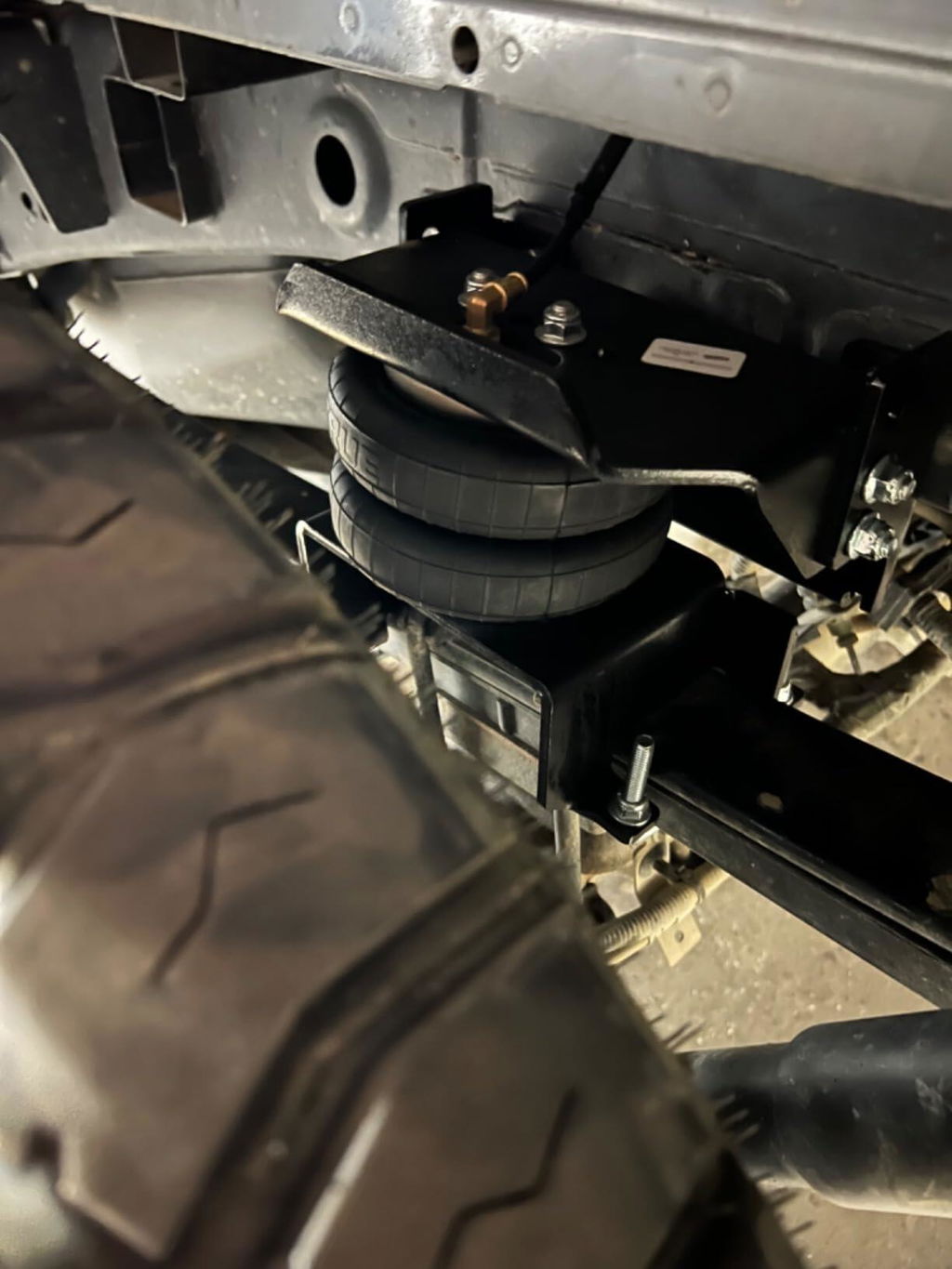

I was impressed with the quality of this kit. Nice heavy, coated pieces. Clear instructions and parts labeled. (Left parts labeled, right were not.) As another reviewer said, locate the air spring to the front hole of the upper bracket for clearance of the leaf spring hardware. Do a trial fit and you will see. Fishing in the back plates was particularly fussy on the driver's side because of brake lines in the way of the hole - see photo. I had clearance issues with my after-market wheel liners. A little cutting on those was required. Getting the wheel well liners on and off was easy with the air bags inflated! Very satisfied overall.
The packaging is good, also comes with a detailed manual, which is very helpful
Absolute pain in the rear to get the bolts in, I called a buddy two hours later it was installed. So far 5 stars
Works great on 2018 F150 four-wheel-drive. Really works at keeping the truck level towing 8,000lbs
Installation was pretty simple, the instructions provided were fairly easy to follow and the illustrations within were clear to see. The only issue that I had was the nut welded inside the frame rail for the jounce bumper. Passenger welds broke, took me a bit of screwing around to get a deepwell and a flexhead socket inside there but once I did that, it went smooth. Driver's side went easier, I used a lot of WD-40 and a wire brush to clean up the bolt before I removed it from the jounce bumper.I also read a lot of the reviews before hand and picked up a 1/4 T fitting to eliminate separate lines for each bag. One fitting, mounted inside the gas cap and life is good. Truck rides completely different loaded than it did before. I have been very impressed so far and once I do some more hauling, I will try to remember to update this post.Now that the airbags are installed, my boat sits a little higher than it did before, may have to find a draw bar with a little more drop to it.
Seems to be of good quality.Easy install.FOLLOW THE INSTRUCTIONS!!!!!!
The instructions could have been better. The instructions state to assemble the second spring as the first but these assemblies are mirror image, not identical. I think the offset caused by the recommended hole selection when attaching the spring to the bracket was wrong. I deducted that it was important to align the spring directly above the axle which caused me to change the hole selection where the pneumatic spring attaches to the upper bracket. This allowed the bottom bracket to be spaced evenly over the spring shackle and kept the pneumatic cylinder aligned vertically with the upper frame bracket. If all this sounds confusing then imagine figuring it out on your own because the instructions weren't correct.
Easy install and has worked as needed for over a year now!
perfect fit for my 2018 f150
The instructions were clear and easy to follow step by step. Read ahead and familiarize yourself with the parts before you begin. I recommend the following: Pick up 2 M10-1.50mm x 20 or 25 Flange bolts ( use theese to replace your jounce bolts). 4- 3/8 x 1 1/2 sae course bolts to use with the frame hole plates ( makes installation easier). Also a magnetic. I used a telescoping retriever magnet that I got at harbor freight years ago. Due to years of experience I used anti siege ( any parts store and Amazon carriers it) on all the threads that weren't factory retreated with thread locking compound ( red color on some of the bolts that come with the set). Follow the step by step simple instructions and do not over tongue the bolts as the will break or strip. Also there are several videos on you tube on installing theese. I haul a Cabover camper and tow a 20 foot pontoon boat with my F- 150. The truck already had a factory tow package and handled the load fine. Theese bags just smoothed out the ride and controlled the side to side roll better. I like and recommend them. All the parts that were supposed to come with them were in the box. Time will tell how long they will last. I routed my air lines inside the frame so I ran them through 3/8 vinyl tube to protect them from wear.
Easy to install
great kit easy install great value

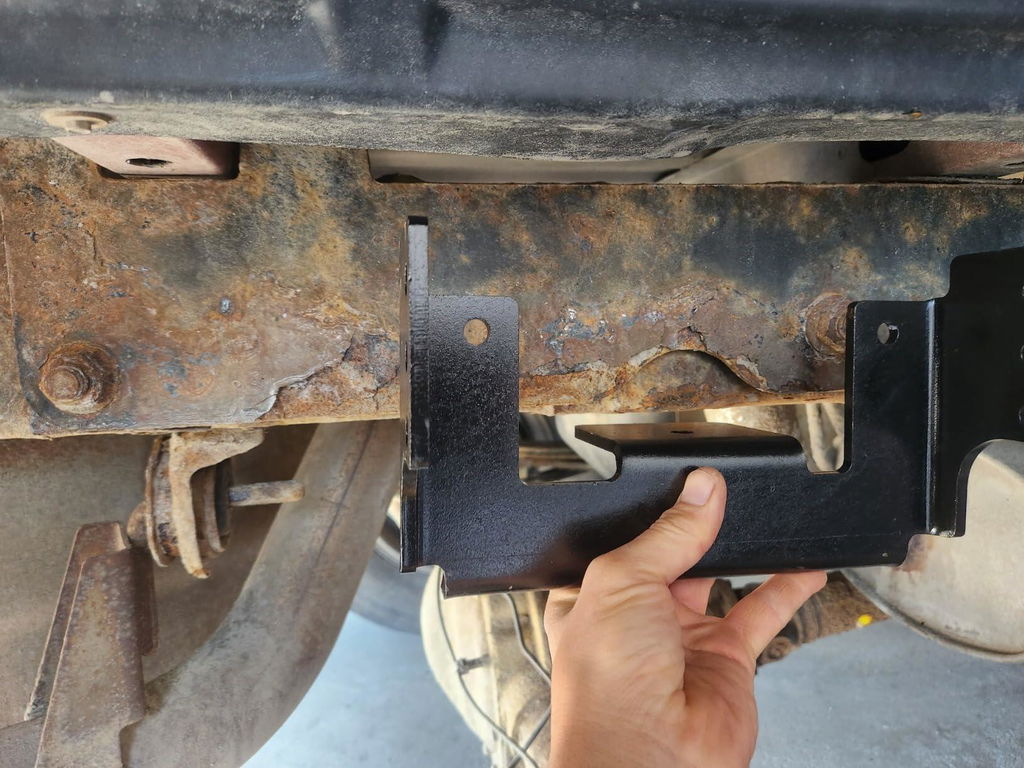

The mounting bracket to the frame was about 1/8 too short and I had to grind out the holes wider. You have to make it fit on the 2024 ford f 150 power boost frame. other wise it did fit the truck. I think because of the battery for hybrid system the frame is a little different. You can get it to fit with a little effort. The rest came together and fit nicely.Good luck. The company did reach out and offered me a full refund for this minor problem. The company will stand behind this product, So I can recommend this company.
Went in fairly simple, I use nitrogen instead of air, pressure stays more stable during temperature changes in the weather. I used a base pressure of 9 psi, for the load I pull it works great. Also know they are driver, passenger side, specific.
Easy install heavy duty bracketry overall happy. Long term I am slightly worried about air bag replacement. The fittings are not pipe thread, they are some sort of metric system. But should last several years before worrying about that.
Quick shipping. Good quality. As described. Very stout materials. Only needs 5-10 psi for quick results towing a 6,000 Lb toy hauler. Excellent instructions and every part have a label for reference.
