RETRUE RideHelper™ Regular Rear Air Bag Kit for 2007–2018 Silverado & Sierra 1500 and 2019 LD/Limited
Fits eligible 2007–2018 Silverado and Sierra 1500 pickups, plus the 2019 Silverado LD and Sierra Limited with the 2018 body. Excludes 2015–2018 High Country/Denali, lowered trucks and in-bed hitches. Up to 5,000 lb of load-leveling support per pair.
Most orders: 1–2 business days processing plus 3–7 business days in transit. Delivery dates are estimates. Shipping details
Level the rear for towing or hauling:
The RAS2430-N rear air springs work with the original leaf springs to help reduce squat from a trailer or cargo. Independent fill valves let you adjust for an uneven load and bring the truck back toward normal ride height.
Pressure and load ratings:
The pair provides up to 5,000 lb of supplemental load-leveling support. Adjust each spring within 5–100 PSI and keep at least 5 PSI per side when unloaded. The kit does not increase factory GVWR, axle, payload, towing, hitch or tire ratings.
What’s in the box:

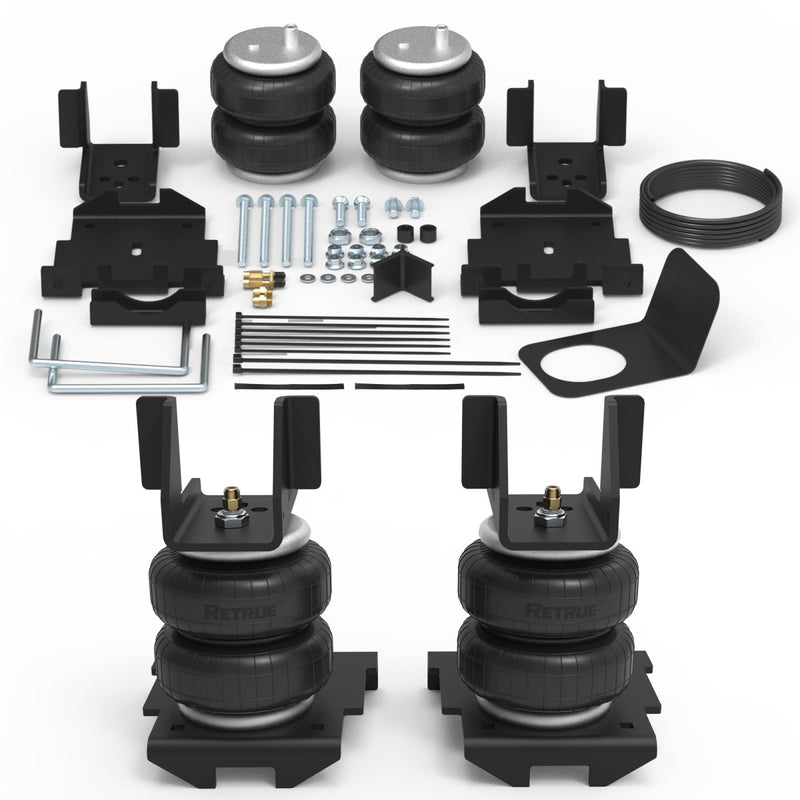

Two double-bellow air springs, upper and lower brackets, upper mounting spacers, bail clamps, axle straps, a heat shield, air line, fittings, two fill valves and hardware. The valves accept an external air source. An onboard compressor is optional.
2007–2018 pickups:
Chevrolet Silverado 1500 and GMC Sierra 1500, 2WD or 4WD. If your 2007 truck is a Classic, confirm the body style and rear mounting points with RETRUE before ordering.
2019 carryover trucks:
Chevrolet Silverado 1500 LD and GMC Sierra 1500 Limited with the 2018 body, 2WD or 4WD. The redesigned 2019 Silverado and Sierra 1500 use a different application.
Exclusions:
2015–2018 Chevrolet Silverado High Country and GMC Sierra Denali. Lowered suspension and in-bed hitches, including fifth-wheel and B&W gooseneck installations, are also excluded.
Lifted trucks:
Keep the factory jounce bumper spacers and measure the gap between upper and lower air spring brackets. The air spring body is 5.5–6.5 in tall. Select additional lift spacers by the bracket gap. You can source them from a separate supplier.
Measured bracket gap → lift spacer height (in):
6.5–7.5 → 1.25
7.5–8.5 → 2
8.5–9.5 → 3
9.5–10.5 → 4
10.5–11.5 → 5
11.5–12.5 → 6
For a measurement on a shared boundary, ask RETRUE to confirm the size.
Application cross-reference: Firestone Ride-Rite 2430. Use RETRUE’s guide and the hardware supplied with your kit.
Shipping:
Eligible orders ship to the 48 contiguous U.S. states and Washington, D.C. Most orders are processed within 1–2 business days, followed by an estimated 3–7 business days in transit. Orders $59 or more qualify for free shipping; orders below $59 have a $10 shipping charge. Delivery dates are estimates, not guarantees. Read the Shipping Policy.
Returns:
Items purchased from RETRUE may be returned in original unused condition within 30 days after you receive your order for a refund, to the original form of payment. All returns must be pre-approved by RETRUE. Otherwise, unauthorized returns will not be accepted. Read return eligibility and refund details.
Warranty: For purchases from retrue.com, the air springs and the mounting brackets and hardware supplied with this kit are covered for six (6) months.
Position: Rear, between the frame and axle on leaf-spring-equipped Silverado 1500 and Sierra 1500 pickups.
Air spring body height: 5.5–6.5 in.
Operating pressure: 5–100 PSI per spring. Maintain at least 5 PSI per side when unloaded.
Supplemental load-leveling support: Up to 5,000 lb per pair, within the truck’s original ratings.
Construction: Reinforced double-bellow rubber air springs and steel mounting brackets.
Installation: The upper brackets use the factory jounce bumper mounting points without drilling the frame. The bail clamps pass below the leaf springs and the separate straps secure the lower brackets under the axle. The installation video shows a no-drill fill-valve bracket. The series guide also illustrates mounting the valves through the bumper or body.
Clearance: With the springs inflated and the vehicle loaded, allow at least ½ in around each spring at potential rub points. Keep the air lines clear of heat and moving parts.
Q1: How can I tell whether my 2019 truck is covered?
A: Look for Silverado LD or Sierra Limited identification on the truck or its vehicle paperwork. Those carryover models use the 2018 body. The redesigned 2019 Silverado 1500 and Sierra 1500 are outside this application.
Q2: Does this kit fit a High Country, Denali or truck with an in-bed hitch?
A: The 2015–2018 Silverado High Country and Sierra Denali are excluded. In-bed fifth-wheel and gooseneck hitches, including B&W systems, are also excluded. A conventional receiver behind the truck is a different hitch location.
Q3: Are the included spacers for a suspension lift?
A: The supplied spacers go between the upper brackets and frame. For a lifted truck, use the Fitment Guide’s six-row chart and the measured bracket gap to select additional lift spacers. The spring body is 5.5–6.5 in tall. Lowered trucks are excluded.
Q4: Where do the brackets and the driver-side parking brake cable go?
A: The upper brackets mount where the original jounce bumpers were bolted to the frame. The lower brackets sit at the axle pads, with the bail clamps under the leaf springs and the straps under the axle. The series guide shows how to secure the driver-side parking brake cable at the upper bracket. Check for clearance before driving.
Q5: Is the 70 PSI shown in the installation instructions the normal driving pressure?
A: The manual uses 70 PSI for the installation leak test. For driving, adjust each spring within 5–100 PSI to level the truck for the actual load. Keep at least 5 PSI per side when empty. Before disconnecting an air line, release the air pressure.
